Screw Piles

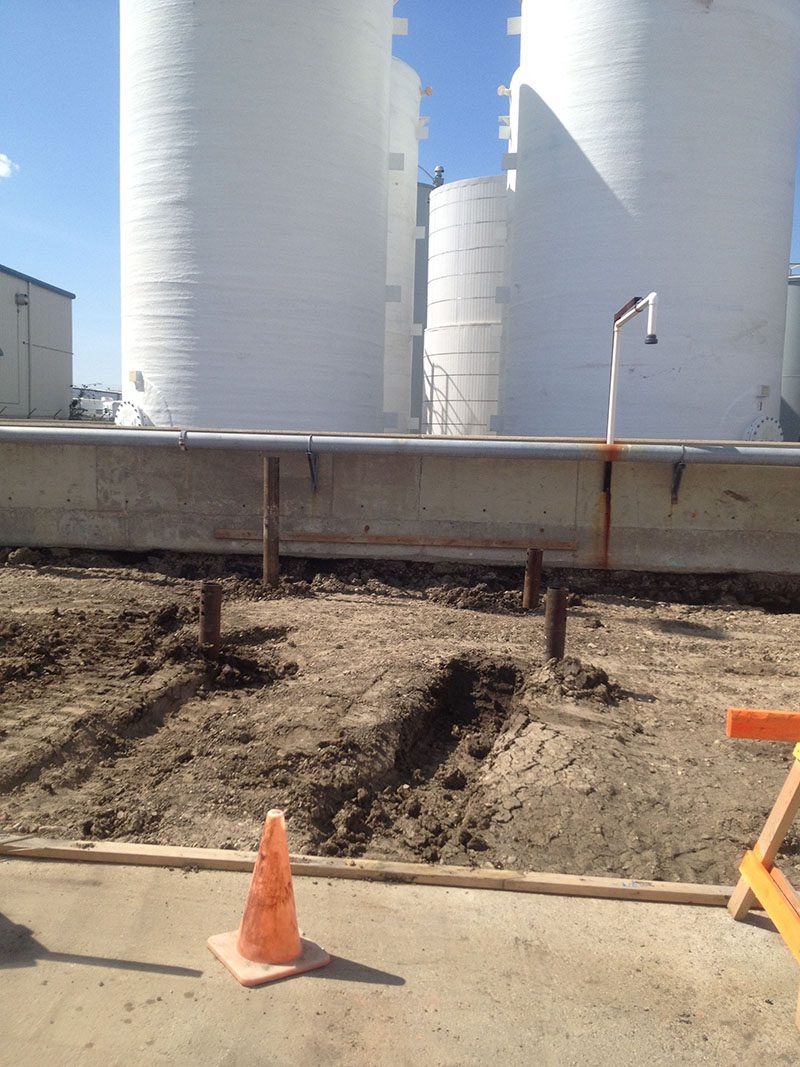

Screw Piles or Helical Piles have many application advantages for use. Most places a pile for support is required, a Screw Pile can be installed to a measured installation capacity. Whether it’s deck or addition support, foundation piles, portable structure support, tie-back retention, solar and telecommunication tower support or a multitude of uses in the oil and gas industry, helical piles have proven to be both an economical and effective alternative.

What are Screw Piles?

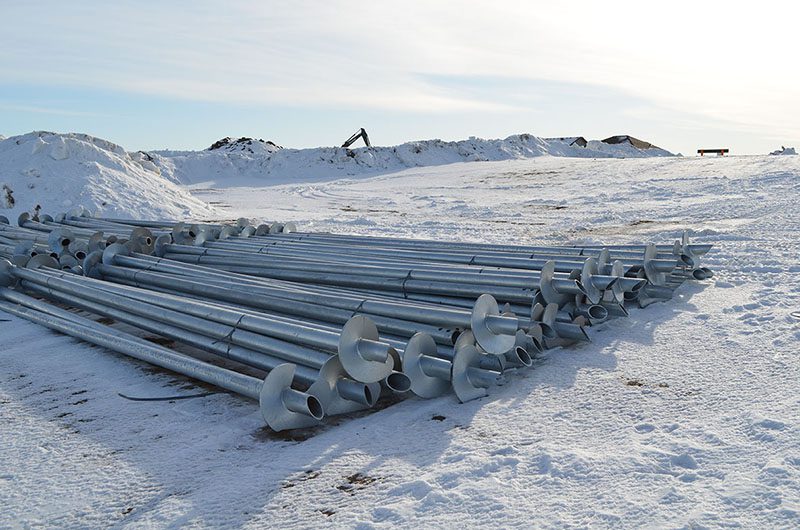

Screw Piles also known as Helical Piles or Helical piers are a very basic product. They consist of a shaft/pipe and a helix (which is much like a single rotation of a screw). Helical Piers “Screw Piles” were first used in England, invented and patented by Alexander Mitchell sometime around 1830. Some of the original installed piles installed in that era have been analyzed and have been found to have not lost any of their integral strength.

How are screw piles installed?

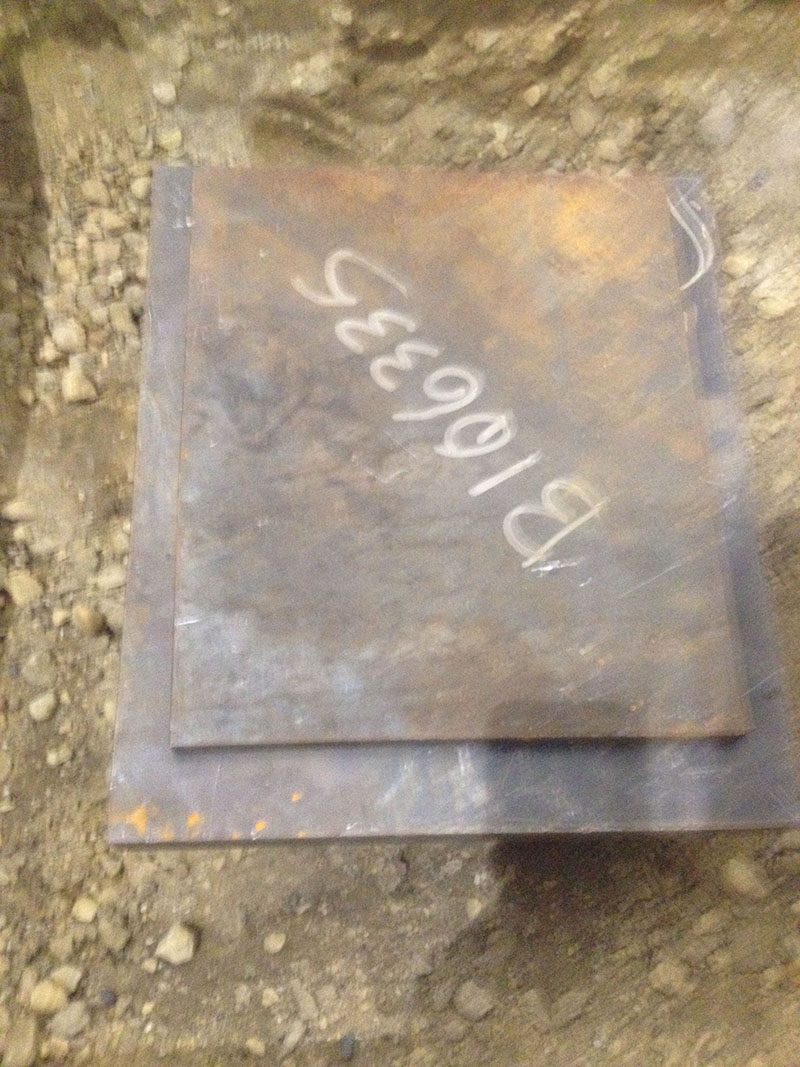

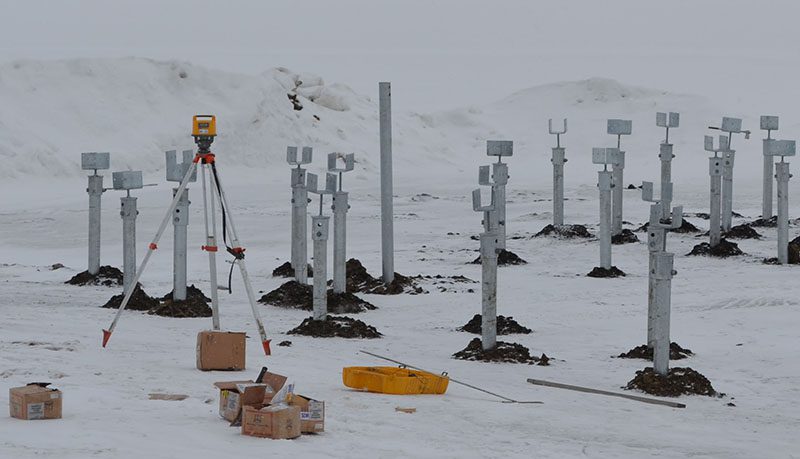

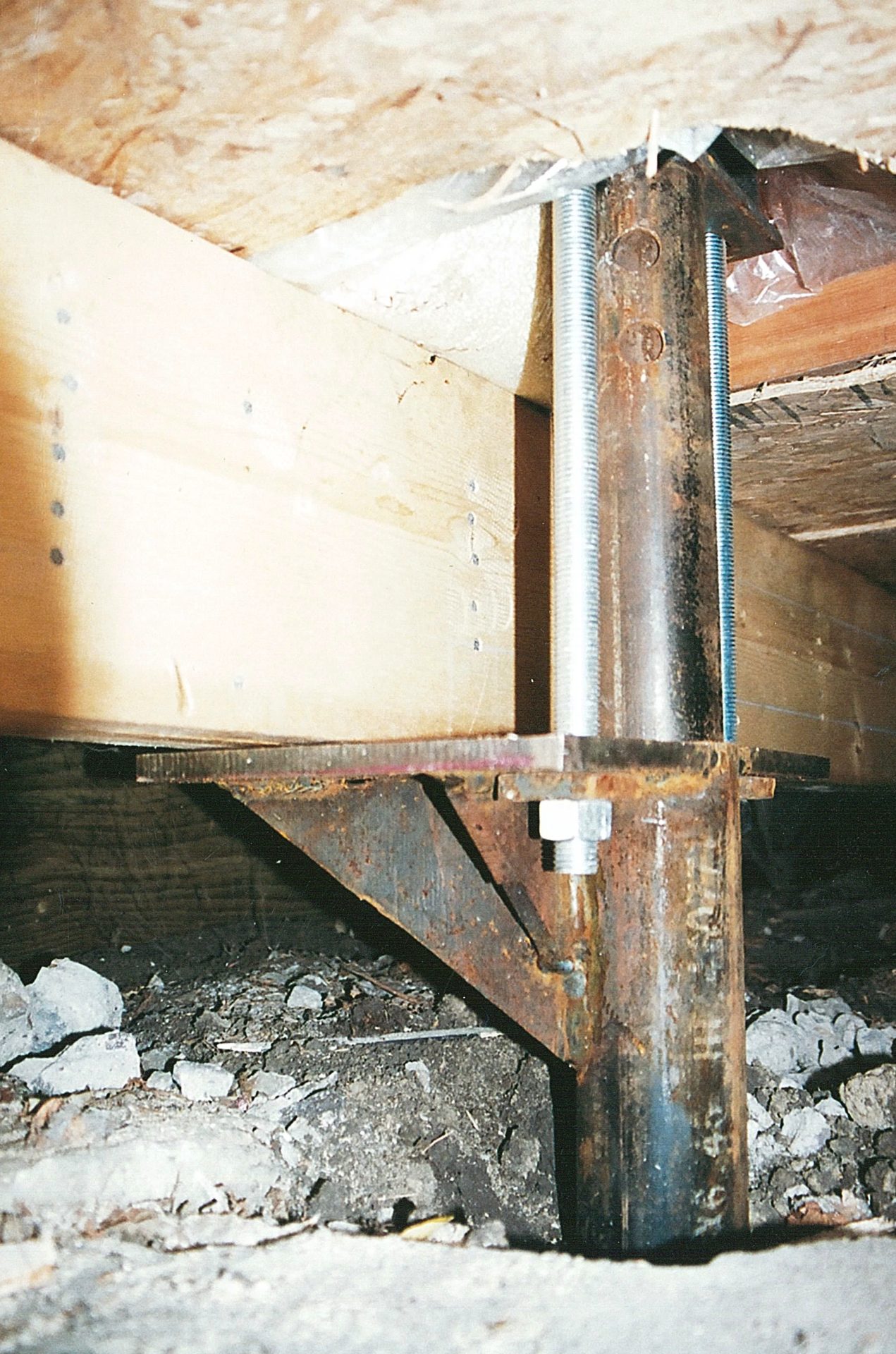

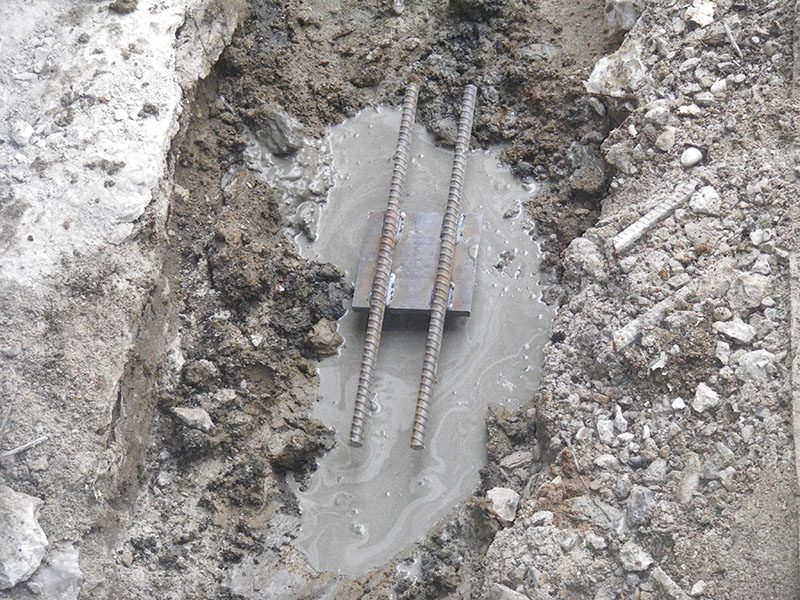

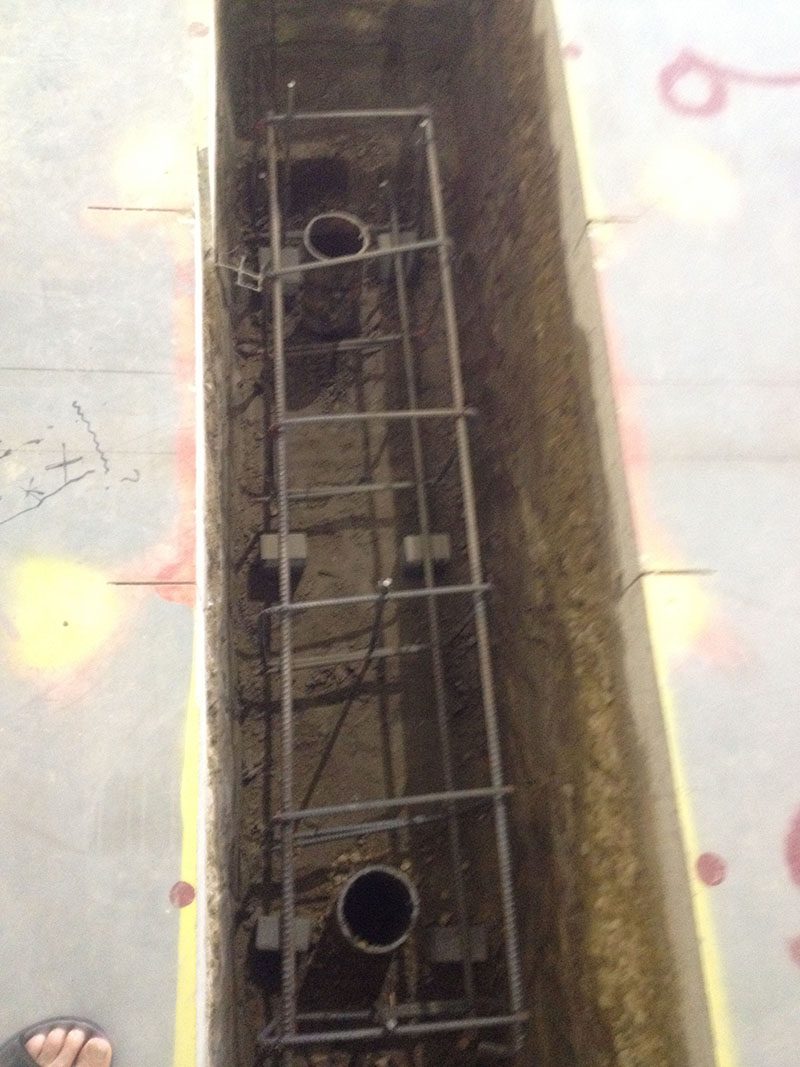

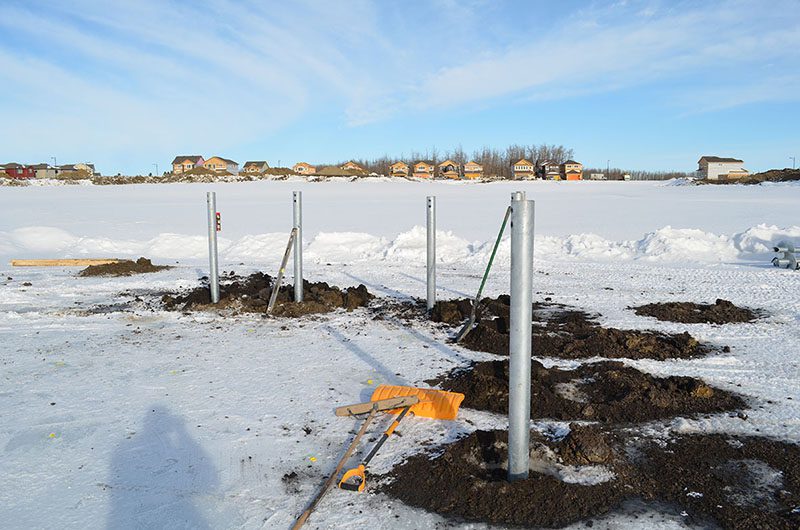

“Screw Piles” are installed at relatively low RPM with an increase in torque during installation. Sections are added as the pier is screwed into the ground. Once the predetermined depth and installation torques are reached the pile can be cut off and a load bearing plate or bracket is attached. With underpinning, this bracket can also be used to accommodate lifting the foundation to level building elements. The latter is a definite advantage over some of the underpinning systems available.

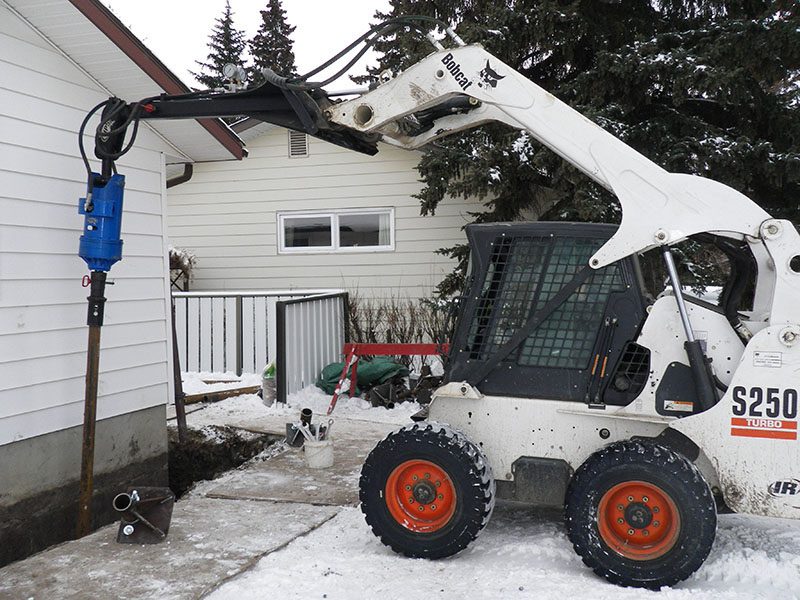

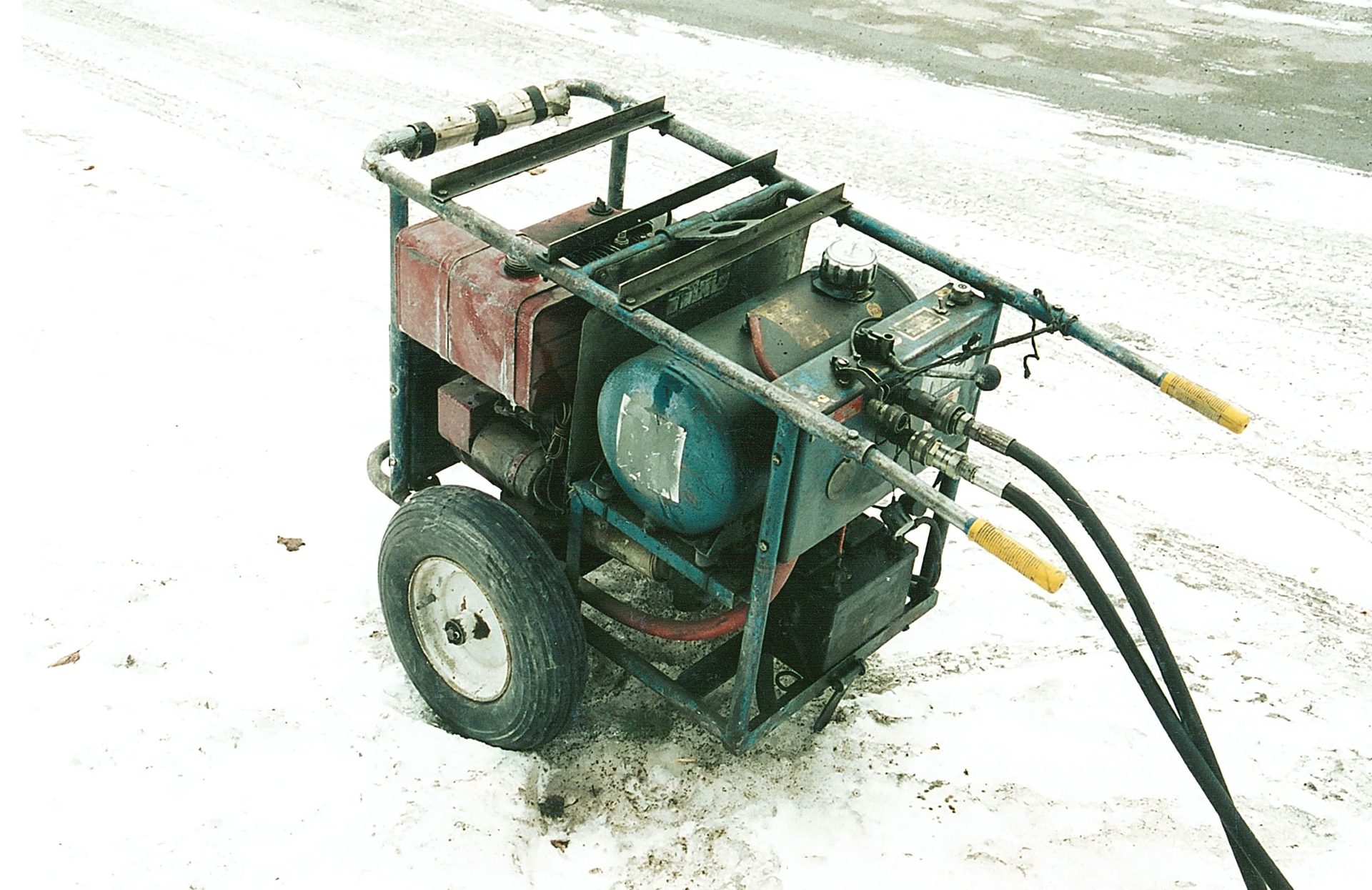

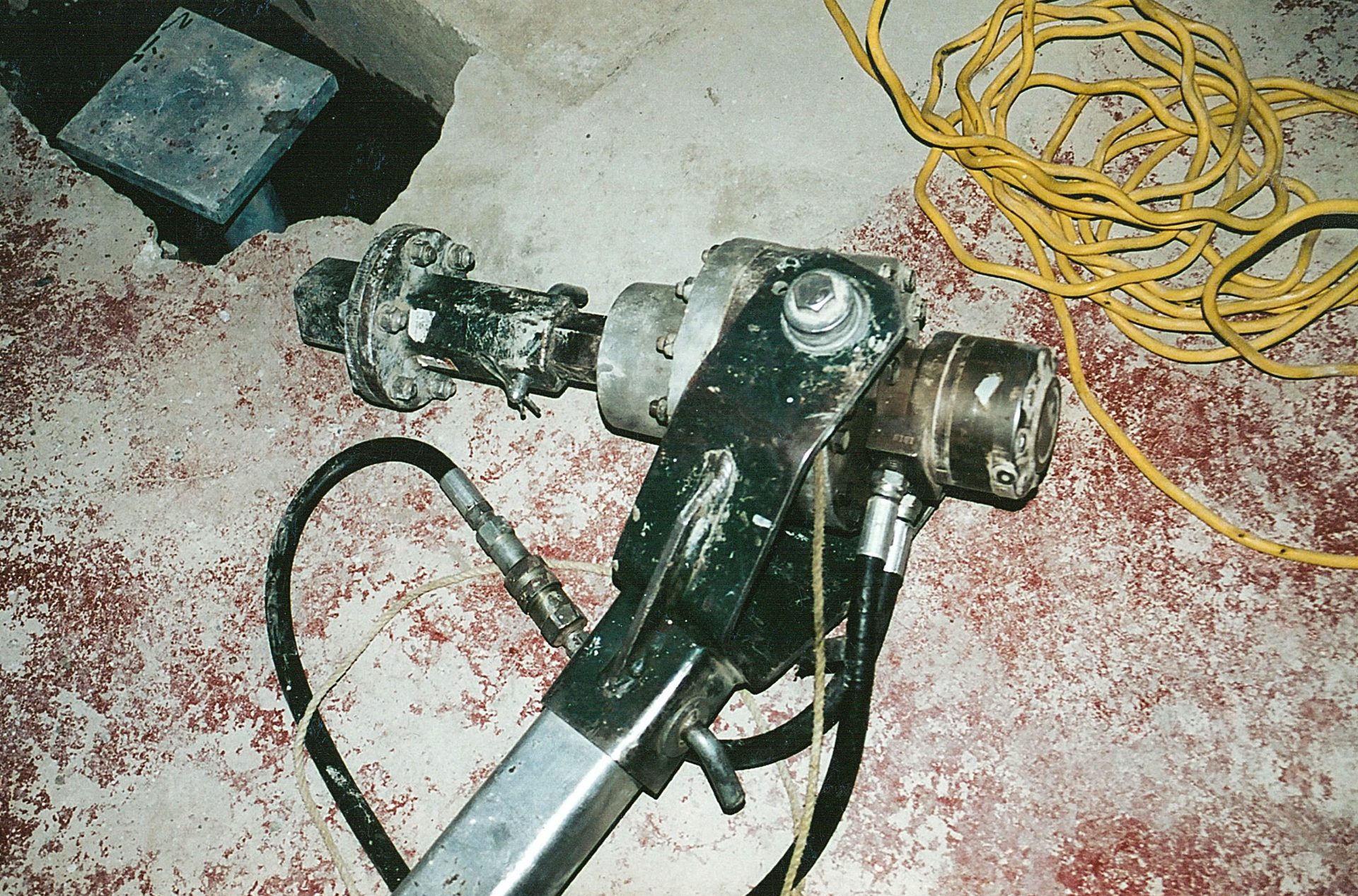

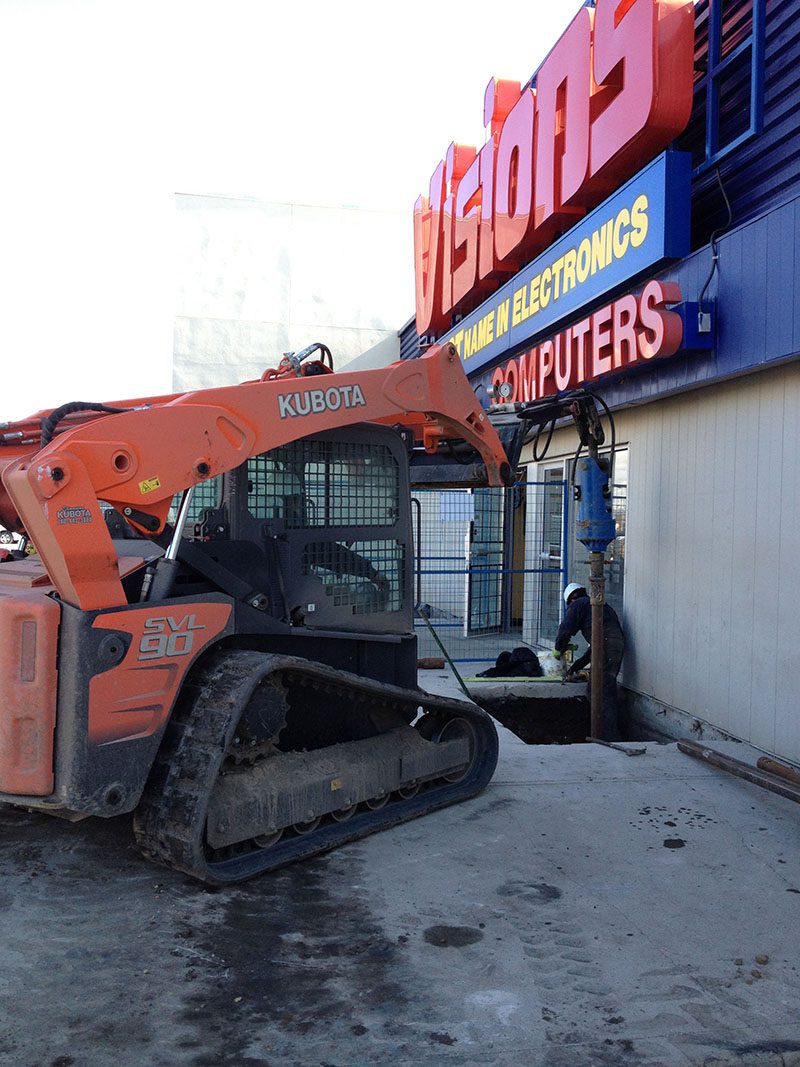

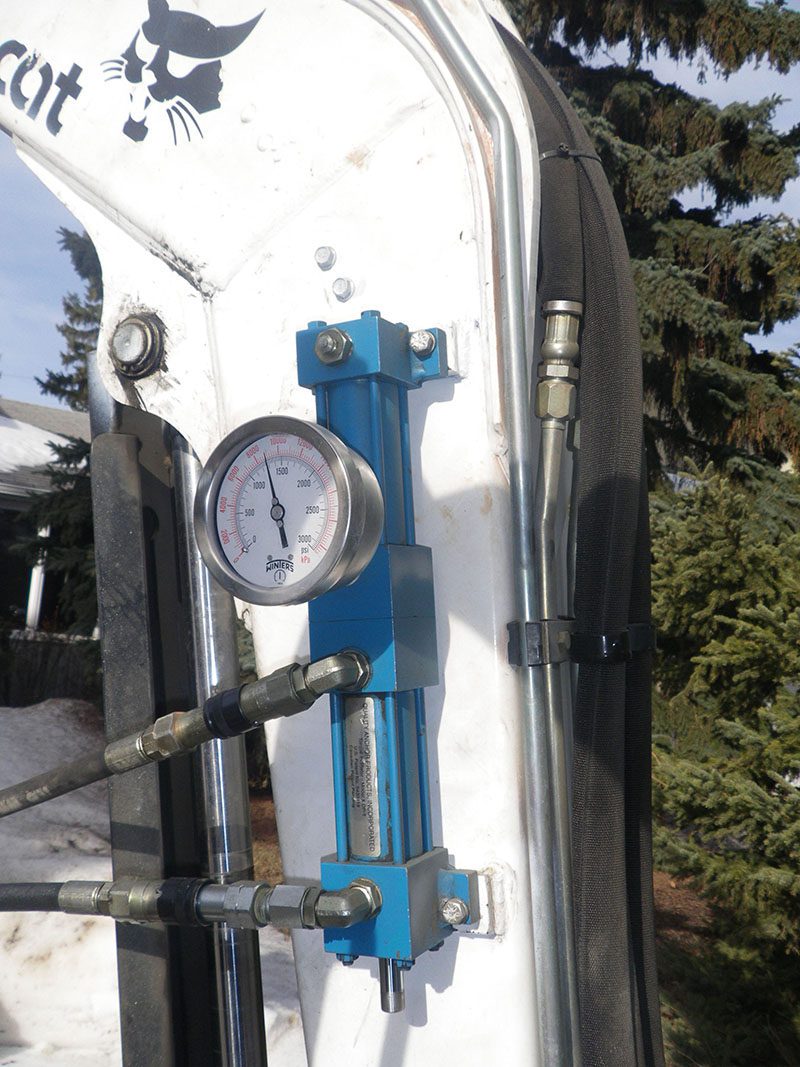

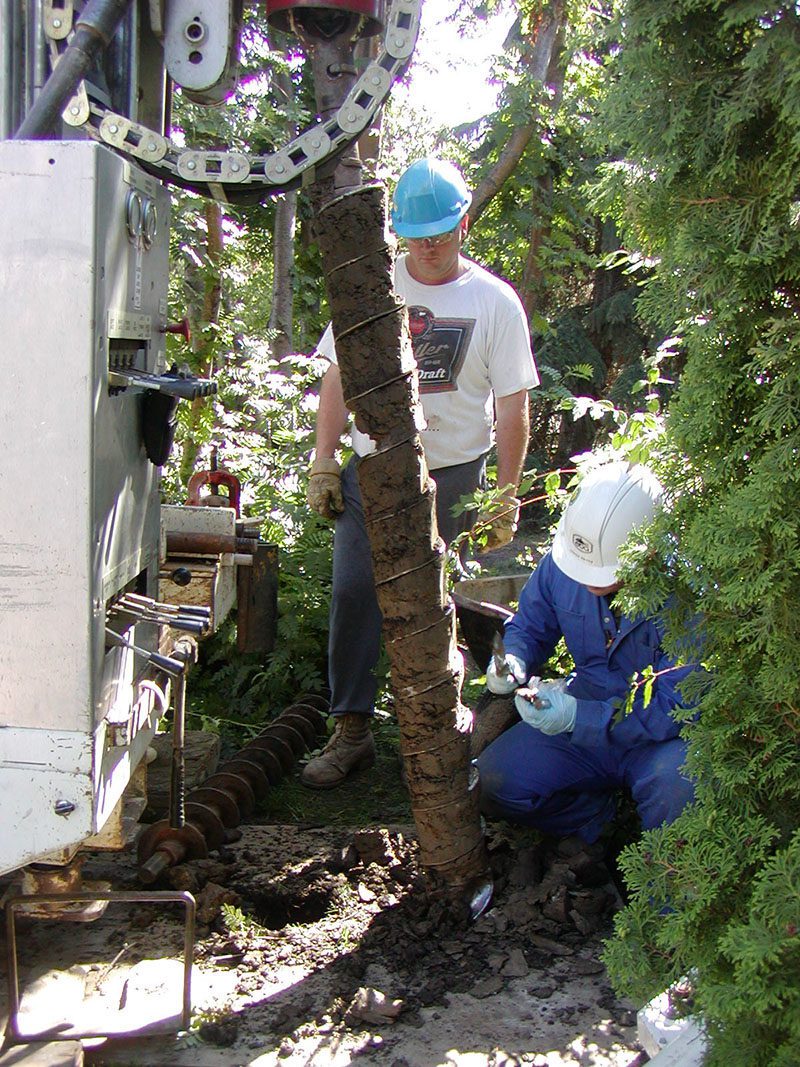

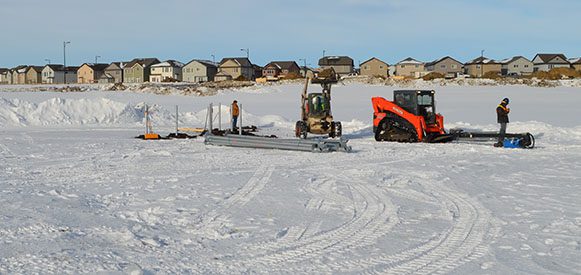

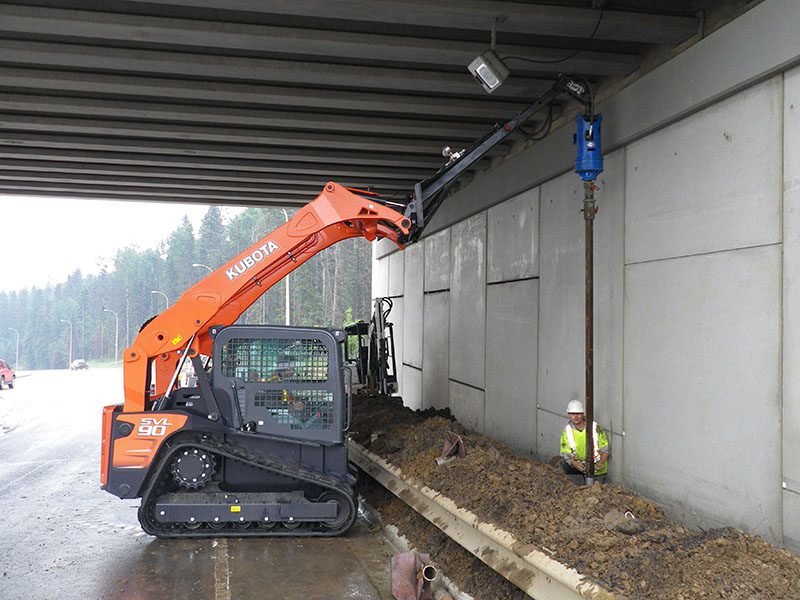

Installation of the piles can be done with anything from small portable equipment to varying sizes of machinery such as a backhoe or skid steer. During the installation of helical screw piles, crews will record the pressure on the hydraulic motor and with that, the torque can be calculated. This installation torque has been shown to have direct correlations to installed pile capacity. A reputable company will only use this installation torque as a confirmation to an already engineered pile design based on a soils investigation.

Advantages of using screw piles

  • Little to no vibration and very little soil disturbance
  • These piles also resist upward forces. This is especially important in expansive soil. The helix is anchored in competent load bearing soil and the frictional forces along the shaft are negligible compared to the end bearing force.
  • Screw Piles are designed as a “True End Bearing Pile” only. Any minimal “skin friction” on the side of the pile shaft is not calculated into the piles required capacity. The amount of weight the pile can handle is governed by the bottom of the pile (Helix plate). This creates confidence in the Helical Pier System to perform in soils where moisture levels change (which would change the parameters upon which any friction pile would work). Keeping in mind that the most common reason for foundation settlement is shrinkage of the soils due to moisture loss, the Helical Pier is the most practical choice for the Engineering community.

12

Helical Pier Systems (HPS)

hp-logo

There are different manufacturers of Helical Piers and they are not all equal. Connection stiffness is of great importance as is pile design and stringent adherence to the manufacturing process. Our manufacturing company, Helical Pier Systems (HPS), dedicates considerable resources to their research and manufacturing process. HPS has offered engineering, manufacturing, equipment design, creation and distribution for helical piling products since 1977.

Resources

  • NEW BROCHURES CURRENTLY UNDER CONSTRUCTION

More Resources

  • Helical Piers vs Drilled Piers: This is an engineering paper on a comparison between screw piles and drilled friction piles.
  • HPS Design Manual: This is a general design manual for Helical Pier Systems Screw Pile products and will be provided to authorized clients upon request.
  • NEW Load Test: This is an article published at www.loadtest.com on the world’s first Osterberg cell (O-cell) load test of a Helical Pile.
  • PIC Load Tests: This is an article in the Piling Industry Canada magazine on the world’s first Osterberg cell (O-cell) load test of a Helical Pile.
  • PIC Magazine: This is an article in the Piling Industry Canada magazine on HPS High Capacity piles.
  • Piling Canada: Article on HPS and helical piles in North America.
